Product Detail

Deep Cycle Battery Series

HXD Series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the HXD series battery offers 30% more cyclic life than the standby series. It is suitable for solar & wind energy system, golf cart, electric wheelchair, etc.

Summary

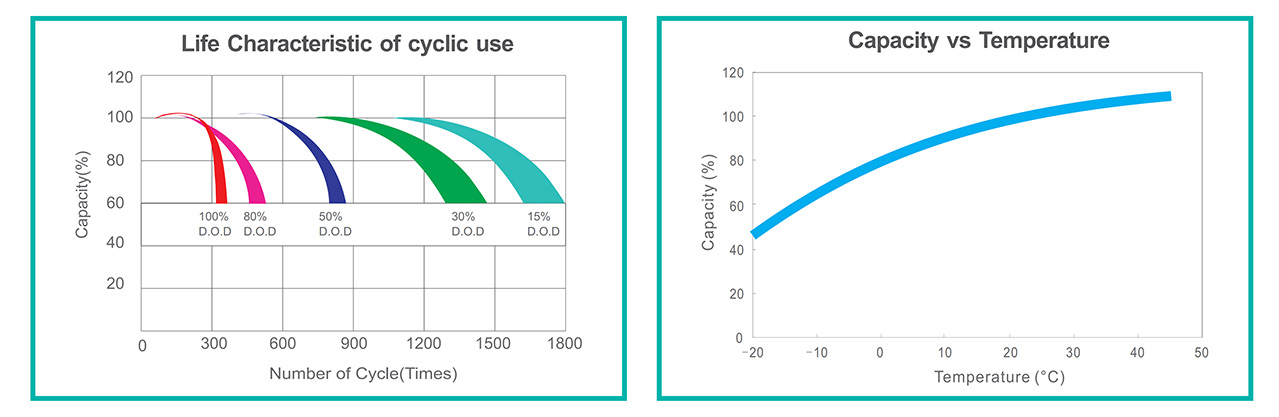

Voltage: 6V,12V Capacity: WEIDA can produce high temperature battery which capacity from 7Ah to 260Ah. Battery cycle life is more than 400 cycles at 80% DOD at 20℃ /68 ℉

Characteristic
General Features Sealed and Maintenance-free Operation High Quality and High Reliability Exceptional Deep Discharge Recovery Low Self-discharge Long Service Life Solid Copper Terminals Tank-formed Plates Computer-aided Design and Manufacturing UL,CE Approved Typical Applications Solar Power system Toys Power tools, lawn mowers, vacu PDA equipment as laptop comput Golf cars and buggies Electric powered vehicles
HXD Series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the HXD series battery offers 30% more cyclic life than the standby series. It is suitable for solar & wind energy system, golf cart, electric wheelchair, etc.

Description

Model	Nominal Voltage(V)	Capacity (10Hr/Ah)	Dimension（mm）				Terminal		Weight ±3%(Kg)
Model	Nominal Voltage(V)	Capacity (10Hr/Ah)	Length	Width	Height	Total height	Type	Position	Weight ±3%(Kg)
HXD6-100	6	100	194	170	205	210	F14	4	15.5
HXD6-150	6	150	260	180	245	250	F13	5	23
HXD6-180	6	180	307	169	220	225	F13	5	27
HXD6-200	6	200	321	176	226	229	F13	4	29.5
HXD6-300	6	300	295	178	345	348	F13	5	47
HXD8-180	8	180	260	182	295	298	F13	6	36.5
HXD12-7	12	7	151	65	94	100	F1/F2	1	2.15
HXD12-9	12	9	151	65	93		F2	1	2.6
HXD12-12	12	12	151	98	95	101	F2/F1	3	3.45
HXD12-18	12	18	181	77	167	167	F17/F18	3	5.25
HXD12-24	12	24	166	175	125	125	F17/F18	6	7.4
HXD12-33	12	33	195	130	155	166	F14	6	10
HXD12-40	12	40	197	165	170	170	F14	3	12.5
HXD12-50	12	50	229	138	211	214	F14	6	15.5
HXD12-50A	12	50	229	138	205	210	F14	6	15.5
HXD12-70	12	70	260	168	211	214	F14	6	21.5
HXD12-65	12	65	350	167	179	179	F14	6	20
HXD12-90	12	90	306	169	211	214	F14	6	27
HXD12-100	12	100	330	171	214	220	F14	6	29.5
HXD12-120A	12	120	409	176	225	225	F13	6	34
HXD12-120	12	120	406	173	208	238	F13	6	34
HXD12-150	12	150	485	172	240	240	F13	6	43
HXD12-160	12	160	530	207	210	213	F13	2	47.5
HXD12-180	12	180	530	207	210	213	F13	2	52.5
HXD12-200	12	200	522	238	218	221	F13	2	59.5
HXD12-250	12	250	521	269	220	223	F13	2	71
